Corona Discharge
Ozone Generator

Corona Discharge Ozone Generators are available in 2 ranges:

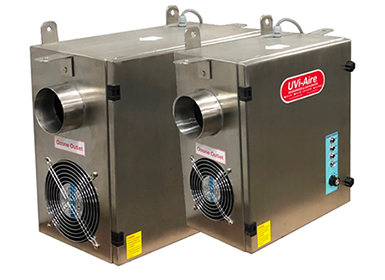

FGA Series (For Ducted Applications)

UVIAIRE’s FGA unit is an Ozone Generator producing high volume of ozone via the corona discharge method. Air is drawn through a blower fan across the corona plates powered by high tension transformers. The oxygen in the air is converted into ozone which is discharged through the 100mm diameter nozzle into the desired area where the ozone reacts with contaminants. All the electronic components and power supply are in a separate compartment, out of the airstream. A hydrophobic prefilter ensures dry clean air the corona discharge plates.

  • Kitchen Exhausts
  • Garbage Rooms
  • Sewage Treatment Rooms
  • Seafood Storage Areas
  • Fresh Food Stores.
  • Other Areas with Odor Problems
Product Specifications
Models FGA-20KSS FGA-40KSS
Dimensions H x W x L (mm) 320x425x220 500x425x265
Weight (kg) 15 Kg 20 Kg
Voltage 230VAC 230VAC
Power (Consumption) 200W– 350W 350W-700W
Ozone Output Up to 20gm/hr Up to 40gm/hr
Maximum Airflow Up to 20,000CMH Up to 40,000CMH

Remarks: Air Flow handling capacity depends on odor level. For heavier odor, a ratio of the maximum airflow is considered. Hence the air handling capacity shall be reduced to 0.25 for heavy odor and 0.5 for medium odor problem. For light odor, the Maximum airflow capacity applies.

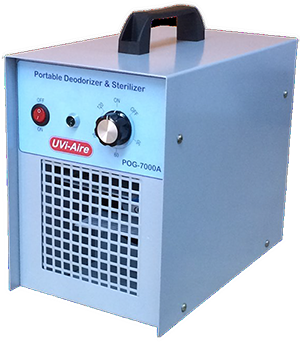

POG Series (For Portable Applications)

This Portable Air Purifier and Deodorizer, POG7000AS is the versatile and effective solution to all forms of indoor pollution; cleaning the environment of mould, fungi, mildew, bacteria, virus and various odours. The POG7000A produces ozone via the corona discharge method

The POG7000A takes in oxygen (O2) from the air and convert it to ozone (O3) which attacks bacteria, virus and various organic molecules and pathogens in the air and materials. It is a “suicidal” molecule looking for contaminants to attack, oxidizing them and eventually destroying itself in the process. Ozone has a very short lifespan and will last 15-20 minutes in ambient temperature before returning to “normal” oxygen.

The POG7000A is light and portable, can be moved from room to room and is simple to operate. There are no confusing digital switches and timers to set. The controls are simple: On Position /Off Position and Timer mode (in blocks of 15mins to 2 hours). This convenient operation is especially useful for hotels, hospitals, restaurants, gymnasiums, kitchens, changing rooms etc.

About POG7000A

This unit has a fan that circulates the ozone into the area to be treated. There is no costly or harmful chemical to replace and maintenance is minimal. It replaces other often ineffective method of odour control such as constant fresh air replenishment with consequent heat or cold air loss, or “deodorizing” by masking odours with artificial fragrances.

Typical Applications

Once the number of lamps are determined, RydAiR will supply all the components needed. These include:

  • Hotel Rooms
  • Supermarkets
  • Hospitals
  • Locker Rooms
  • Wet Markets
  • Gymnasiums
  • Bars & Pubs
  • Food Preparation Areas
  • Kitchens
  • Garbage Rooms
Weight 5.8 Kg
Dimension (mm) H:260 x L:310 x D:185
Housing Stainless Steel
Voltage 230 VAC
Power 90 Watts
Ozone Output 7000mg/Hr
Controls Manual (with Timer)
Area Coverage Up to 200 Sq Meters
